Model Lakes

Koyena Pal1, David Bau1, Renée Miller1 & 2
1Northeastern University, 2University of Waterloo
International Conference on Extending Database Technology (EDBT 2025)

Paper

What is a Model Lake?


The concept of data lakes emerged in early 2010s to collect raw, unstructured data at scale — laying the foundation for modern big data analytics. As organizations recognized the value of vast, untapped data, the study of data lakes evolved, shaping how we store, manage, and extract insights from large-scale information.

Today, we face a similar shift with pre-trained models. Just as data lakes transformed data management, model lakes offer a new paradigm for organizing and understanding the growing ecosystem of AI models. Our paper formalizes and standardizes key model lake tasks — improving model search, analysis, and utilization while bridging community efforts toward the common challenge of navigating a vast model space.


Model Lakes Design. A model lake stores models and processes them using techniques, like inference, interpretability, weight-space modeling and indexing to support various user interactions. It generates outputs like version graphs, model cards and ranked models, refining them into human-readable results, as shown on the figure's right side.

Three Viewpoints of a Model

An AI model can be analyzed from three viewpoints:

  • History: Documentation, primarily model cards that may include records of training data, methodology, and development process.
  • Intrinsic Composition: Model's internal structure, parameters, and associated weights.
  • Extrinsic Behavior: Observable outputs, responses, and interactions.
The distinction among intrinsics, extrinsics, and history is useful because, while every model M = (D, A, ƒ∗, θ, pθ ) has all these characteristics, there are cases where certain aspects may be unavailable. For example, in a Model Lake, the intrinsic details of some models might be inaccessible, and some analysis methods may rely solely on extrinsic observations or historical records to understand a model's behavior. We use this distinction to analyze possible solutions to a variety of model lake tasks.

The Four Categories of Model Lake Tasks

Model lake tasks focus on extracting and presenting insights from stored models, enabling a deeper understanding of their origins, relationships, and performance. These tasks include:


On the bottom of the figure, we illustrate the concept of model lakes, where diverse models are stored. As these models undergo the tasks outlined on the top-right side, users gain a deeper understanding of their origins, strengths, and how they are structured in relation to other models. This process provides key insights into the models' development, performance capabilities, and their positioning within the broader landscape of models. A model is defined as M = (D, A, ƒ*, θ, pθ ), where D (training data) and A (algorithm) can be traced through documentation, while architecture ƒ* and parameters θ come from accessible model weights, and behavior pθ from observable outputs (illustrated on the upper left side of the figure).

Related Works

Preliminary work from various specialized fields — including databases, interpretability, and cybersecurity — has shaped our understanding of model lake tasks, guiding how we define and approach each one.

Model Attribution

buneman-2001Peter Buneman, Sanjeev Khanna, and Wang-Chiew Tan. Why and Where: A Characterization of Data Provenance. 2001.
Notes: In data lakes, data provenance is the "description of the origins of a piece of data and the process by which it arrived in a database." We extend this concept to model attribution.

grosse-2023 Roger Grosse, Juhan Bae, Cem Anil, Nelson Elhage, Alex Tamkin, Amirhossein Tajdini, Benoit Steiner, Dustin Li, Esin Durmus, Ethan Perez, Evan Hubinger, Kamilė Lukošiūtė, Karina Nguyen, Nicholas Joseph, Sam McCandlish, Jared Kaplan, Samuel R. Bowman. Studying Large Language Model Generalization with Influence Functions. 2023.
Notes: Influence functions aim to answer a counterfactual: how would the model's parameters (and hence its outputs) change if a given sequence were added to the training set?

shi-2024 Weijia Shi, Anirudh Ajith, Mengzhou Xia, Yangsibo Huang, Daogao Liu, Terra Blevins, Danqi Chen, Luke Zettlemoyer. Detecting Pretraining Data from Large Language Models. 2024.
Notes: Given a piece of text and black-box access to an LLM without knowing the pretraining data, can we determine if the model was trained on the provided text?

Model Versioning

shraga-2023Roee Shraga, Renée Miller. Explaining Dataset Changes for Semantic Data Versioning with Explain-Da-V. 2023.
Notes: Explain-Da-V is a framework aiming to explain changes between two given dataset versions. Explain-Da-V generates explanations that use data transformations to explain changes.

horwitz-2024 Eliahu Horwitz, Asaf Shul, Yedid Hoshen. On the Origin of Llamas: Model Tree Heritage Recovery. 2024.
Notes: This paper introduces the task of Model Tree Heritage Recovery (MoTHer Recovery) for discovering Model Trees, which describes the origin of models i.e., the parent model that was used to fine-tune the target model. We extend this definition to include multiple parent models to handle cases such as model stitching.

mu-2023 Xin Mu, Yu Wang, Yehong Zhang, Jiaqi Zhang, Hui Wang, Yang Xiang, Yue Yu. Model Provenance via Model DNA. 2023.
Notes: The authors propose a data- and model-driven method to encode "Model DNA" for identifying if a model is a pre-trained version of another, assuming both share the same architecture and training data.

Model Search

lu-2023 Daohan Lu, Sheng-Yu Wang, Nupur Kumari, Rohan Agarwal, Mia Tang, David Bau, and Jun-Yan Zhu. Content-based Search for Deep Generative Models. 2023.
Notes: This paper introduces the task of content-based model search for vision models: given a query and a large set of generative models, find the models that best match the query.

achille-2019 Alessandro Achille, Michael Lam, Rahul Tewari, Avinash Ravichandran, Subhransu Maji, Charless C. Fowlkes, Stefano Soatto, Pietro Perona. Task2Vec: Task Embedding for Meta-Learning. 2019.
Notes: The authors introduce a method to generate vectorial representations of visual classification tasks which can be used to reason about the nature of those tasks and their relations.

wang-2024 Wenxiao Wang, Weiming Zhuang, Lingjuan Lyu. Towards Fundamentally Scalable Model Selection: Asymptotically Fast Update and Selection. 2024.
Notes: The authors define isolated model embedding, which refers to a subset of the model embedding family where computing the embedding of each individual model is isolated from the others.

Benchmarking

hendrycks-2021 Dan Hendrycks, Collin Burns, Steven Basart, Andy Zou, Mantas Mazeika, Dawn Song, Jacob Steinhardt. Measuring Massive Multitask Language Understanding. 2021.
Notes: The authors propose a new test to measure a text model's multitask accuracy. The test covers 57 tasks including elementary mathematics, US history, computer science, law, and more.

lin-2014 Tsung-Yi Lin, Michael Maire, Serge Belongie, James Hays, Pietro Perona, Deva Ramanan, Piotr Dollár, and C Lawrence Zitnick. 2014. Microsoft COCO: Common objects in Context. 2014.
Notes: The authors present a dataset with the goal of advancing the state-of-the-art in object recognition by placing the question of object recognition in the context of the broader question of scene understanding.

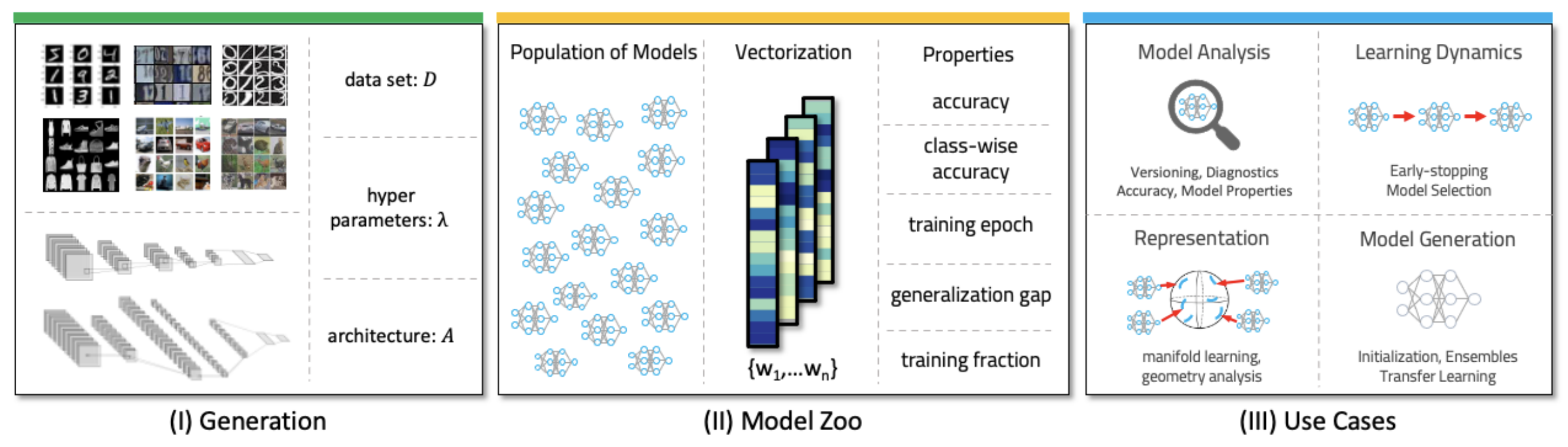

schurholt-2022 Konstantin Schürholt, Diyar Taskiran, Boris Knyazev, Xavier Giró-i-Nieto, Damian Borth. Model Zoos: A Dataset of Diverse Populations of Neural Network Models. 2022.
Notes: The authors publish a novel dataset of model zoos containing vision models trained on several image dataset with two CNN architectures and a multiple configurations of hyperparameters.

How to cite

This work is appearing at EDBT 2025. The preprint version can be cited as follows:

bibliography

Pal, Koyena, David Bau, and Renée J. Miller. "Model Lakes." arXiv preprint arXiv:2403.02327 (2024).

bibtex

@misc{pal2025modellakes,
    title={Model Lakes},
    author={Koyena Pal and David Bau and Renée J. Miller},
    year={2025},
    eprint={2403.02327},
    archivePrefix={arXiv},
    primaryClass={cs.DB},
    url={https://arxiv.org/abs/2403.02327},}
